Ultra-clean Combiblock-Newamstar

Ultra-clean Combiblock

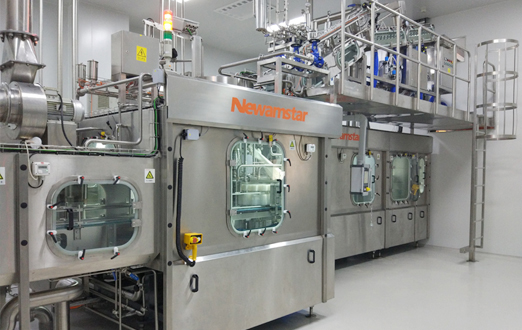

Ultra-Clean Blowing-Filing-Capping Combiblock integrates functions of blowing, disinfection, cleaning, filling and capping to ensure the health and safety of beverages. The technology can be divided into ultra-clean hot filling (82-92 °C), ultra-clean medium temperature filling (68-75 °C), ultra-clean normal temperature filling (16-35 °C), ultra-clean cold filling (4- 15°C).

Application Scope:
　　　　Mainly used for packaging PET bottles of juice, liquid milk, tea, energy drinks, etc.
Capacity Range:
　　　　12000 bottles/hour -48000 bottles/hour; for the bottle types of 150ml-1500ml

Technical Features

01Friendly HMI with easy switch for multi-languages.
02Advanced reflection system by ceramic plate, heat-preservation system and heating system, preform can be heated evenly.
03Unique high-pressure gas recovery system that saves more than 30% of compressed air.
04Ionized de-duster can be equipped to improve the cleanliness of the packaging container.
05The tailored made servo stretching system can be adapted to preforms with various stretching ratio, achieving the variable speeds and high accuracy positioning.
06The filling valve is designed with the tidy and safe valve body, the material quality can be fully guaranteed.
07A high-pressure air circuit sterilization system to ensure the safe operation of high-pressure air lines.
08A sterilization process for a variety of packaging materials to meet the needs of various products.
09Filling methods with a variety of flow rates can achieve alternate filling speeds to meet different characteristics of beverage filling.
10Disinfectant-immersed or in-line spray-type bottle cap sterilizer.
11Automated process inspection, control, and data report and record systems to provide aseptic monitoring for all key aspects of the production line.
12Complete CIP, COP, SIP, SOP cleaning systems to ensure the process safety of the filling environment.
